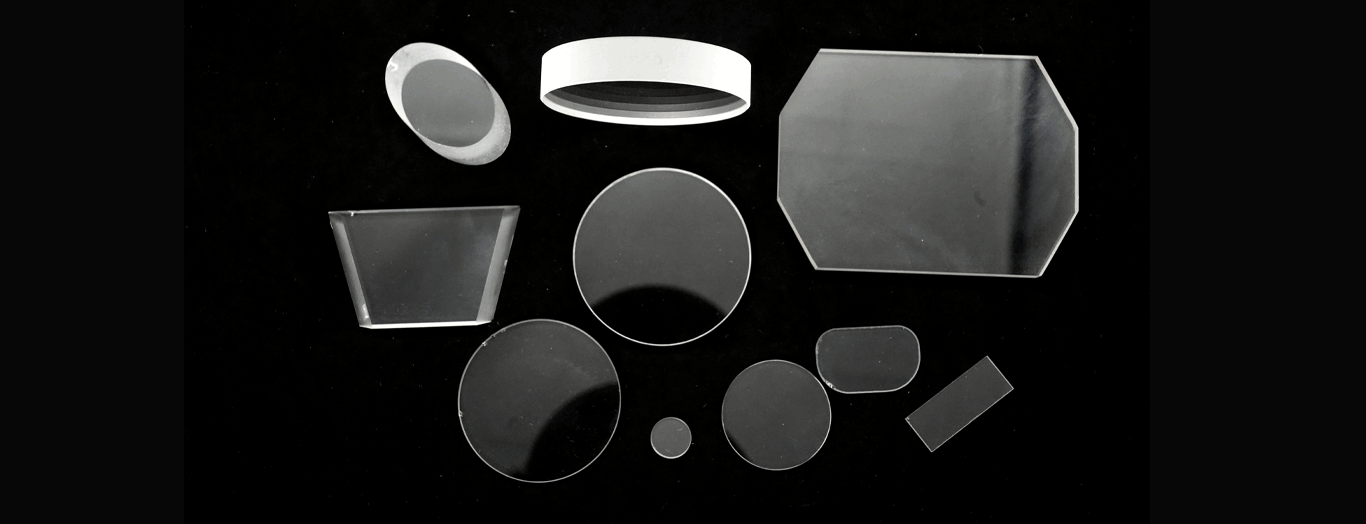

Fused Sillica Windows



 Advantages of fused silica windows include: good transmission, low thermal expansion, stability and resistance to thermal shock over large temperature excursions, wider thermal operating range and high laser damage threshold.

Alpha  Optics’ UV grade fused silica parallel windows feature low distortion, low scatter, and excellent parallelism for laser and non-laser applications.


Specifications:
Material: BK7 grade A optical glass
Diameter Tolerance: +0.0, -0.15mm
Thinkness Tolerance: +/-0.2mm
Clear Aperture: >85% of diameter
Parallelism: <1 arc minute(Standard), <10 arc seconds(Precision)
Surface Quality: 60-40 scratch and dig(Standard), 10-5 scratch and dig(Precision)
Flatness: λ/4 @632.8nm(Standard), λ/10 @632.8nm(Precision)
Wavefront Distortion: λ/4 @632.8nm(Standard), λ/10 @632.8nm(Precision)
Bevel.: 0.25mmx45deg
