Windows

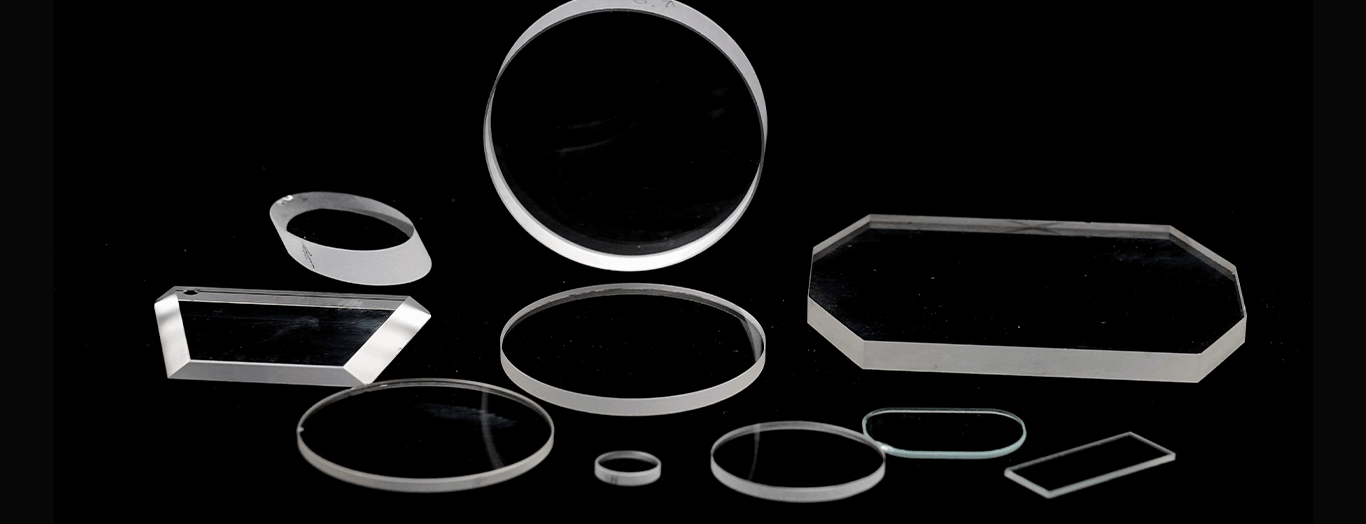

  Fused Silica Windows

Specifications:
Material: UV grade Fused Silica
Diameter Tolerance: +0.0, -0.15mm
Thickness Tolerance: +/-0.1mm
Clear Aperture: >80%
Parallelism: 1 arc minute
Surface Quality: 60-40 scratch and dig
Wavefront Distortion: λ/4 per 25mm
Coating: AR R<0.2% @ 1064nm
Protective Bevel



Part No. φ(mm) T (mm)
AWIN1101 27 2
AWIN1102 50 2
AWIN1103 50 1.5
AWIN1104 55 1.5
